Add or Edit Custom Tables

This topic describes how to add or edit a custom table.

To add or edit a custom table

1. In Easy Workflow Cockpit, select Manage > Custom Tables. The Custom Tables window is displayed.
2. To add a custom table, select Add. The Create Custom Table window is displayed.
3. To edit a custom table, select the custom table that you want to edit, and select Edit. The Edit Custom Table "NameOfCustomTable" window is displayed.
4. In Table Name enter a name for the table and in Admin Note enter a description for the table.
5. Enter the following information:
   • Column Name: Indicates the name of the database column.
   • Data Type: Indicates the data type of the column.
   • Length: Indicates the maximum allowed limit for the data.
   • Default Value: Indicates the default value for the column.
6. To add columns other than the default columns, select Append.
7. Select Save. The changes to the custom table are saved.

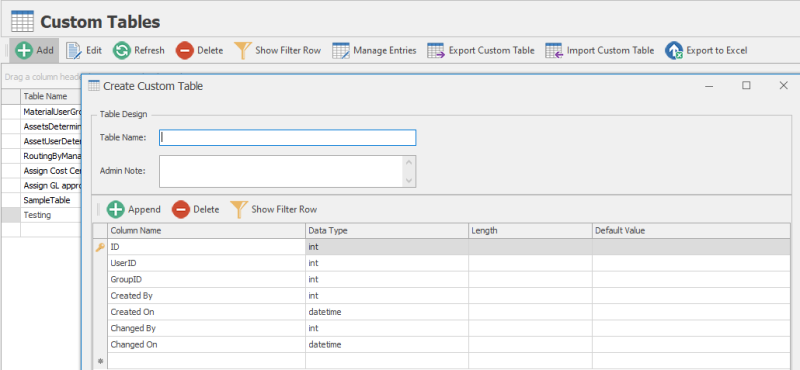

   Screenshot: Add option
