Mapper provides graphical way to look elements of Transaction or BAPI interface that you are working on. It allows you to map SAP fields to iTable columns and cells or dynamically generated System values.
Mapper also provides looping and other advanced capabilities so you can tell Process Runner DB how to interpret data stored in iTable and how to upload them in SAP.
Mapper has dynamic search and filtering row where you can narrow down your focus to important fields.
Finally Process Runner DB mapper allows you to select multiple rows and assign mapping values to all the selected rows. This process can significantly reduce the time taken to map large file (especially in case of BAPI).
Mapper layout will be different for Transaction and BAPI/RFM.
If the Mapper tab is not visible then refer to steps mentioned in Tabs to display the tab.

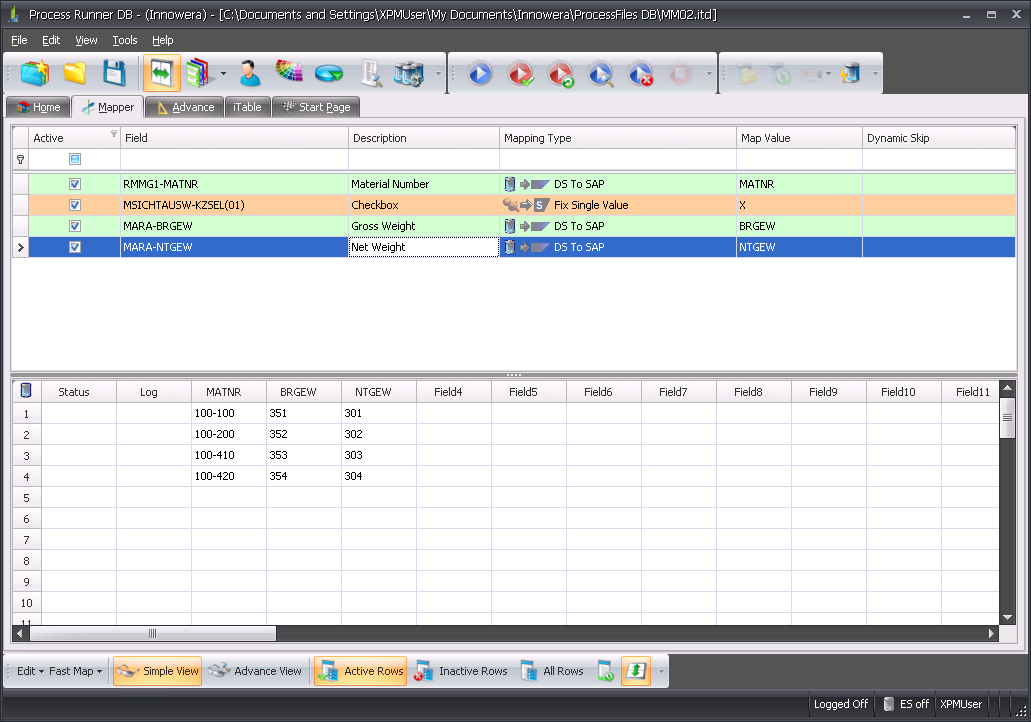

Columns - Simple view • Active : This check box tells Process Runner DB to either consider the given row or not. Setting a row to inactive (unchecking) will tell Process Runner DB to keep the row but not to look at when you execute this process. • Field : Displays SAP Field name • Description : Displays Field or Screen description if you had earlier requested that information while creating this file. This is purely for information or readability purpose and does not impact how transaction is executed. • Mapping Type : • None : Removes any mapping previously assigned. • iTable to SAP : Tells Process Runner DB to get the value from iTable column • SAP to iTable : Tells Process Runner DB to place value received from SAP to given iTable column • Fix Single Value :Tells Process Runner DB to use value provided in "Map Value" column • System Value : Tells Process Runner DB to use dynamically calculated value as provided in "Map Value" column • Fix iTable Value :Tells Process Runner DB to place value received from SAP to given iTable cell • Map Value : In this field you provide actual mapped value based on Mapping Type. For example, if you have mapping type set as "iTable to SAP", you specified which iTable column to use in this column. • DS (Dynamic Skip) : DS feature of Process Runner DB.
Columns - Advance view (Additional columns displayed) • Screen Name : Displays Screen name and number related to Transaction you recorded. • DF (Dynamic Formula):DF feature of Process Runner DB. • Length : Length of fields to be used in DF. Please note that the 'Total Field width' of 512 characters per record is standard (feature/limitation) delivered in all standard SAP systems.
Right click menu items:
• Cut : Cut current row to clipboard. • Copy : Copy current row to clipboard. • Paste : Paste raw from clipboard before current row • Clone : Duplicate Single / Multiple selection of records in Mapper. • Delete : Delete Single / Multiple selection of records in Mapper. • Select All Rows : Selects all the rows displayed in Mapper. • Fast Map : These actions are applied to all the selected row. • None : Removes any mapping previously assigned. • iTable to SAP : Tells Process Runner DB to get the value from iTable column • SAP to iTable : Tells Process Runner DB to place value received from SAP to given iTable column. • Simple View : View the most relevant columns in Mapper. • Advance View : View more advance columns in Mapper. • Active Rows : Displays only Active Rows • Inactive Rows : Displays only Inactive Rows • All Rows : Displays all the rows (Active + Inactive) • Restore to Original recording : Revert to fresh mapper settings (Mapper settings after New Recording).
|

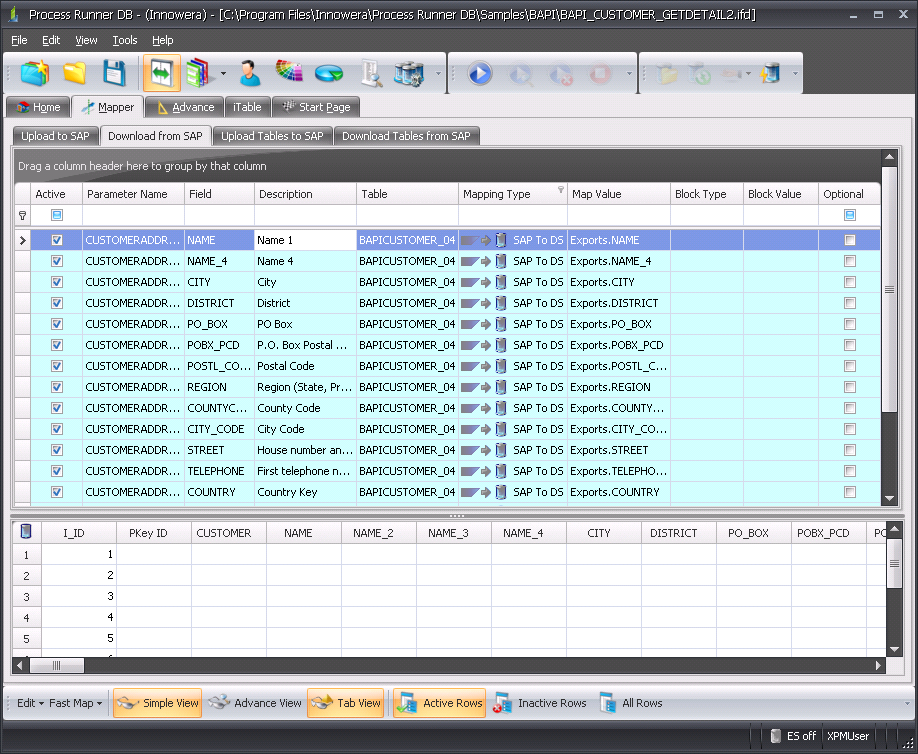

For RFM there are two views available - Tab View & Normal view as shown below in the screens
Tab View: This provides a categorized view of fields pertaining Upload to SAP & Download from SAP. The Upload/Download from SAP tab pertains to fields that can be used either for Upload or Download from SAP. You can further switch between simple and advance view within this.
Non-Tabbed View: This is the normal view which displays all the fields in one Tab.
Columns • Parameter Type : Parameter Type indicates BAPI interface type for given field. Parameter type could be Imports, Exports, Changing or Tables. • Parameter Name : Parameter name provides actual name of the parameter type as defined in SAP interface • Field : Displays SAP Field name • Description : Displays Field or Screen description if you had earlier requested that information while creating this file. This is purely for information or readability purpose and does not impact how transaction is executed. • Table : This column displays Associated Type as defined in interface for this BAPI. It could be SAP structure or Table. • Mapping Type : • None : Removes any mapping previously assigned. • DS(Data Source) to SAP : Tells Process Runner DB to get the value from DS column • SAP to DataSource : Tells Process Runner DB to place value received from SAP to given DataSource column • Fix Single Value :Tells Process Runner DB to use value provided in "Map Value" column • System Value : Tells Process Runner DB to use dynamically calculated value as provided in "Map Value" column • Fix DS Value :Tells Process Runner DB to place value received from SAP to given iTable cell
• Block Type : This column is available when you use Loops. In case of looping thru iTable data, using this column you can tell Process Runner DB how it should loop thru your iTable data. You can tell that iTable data is grouped in "Fix Block" or certain rows or grouped by similar values i.e. "On Change" or grouped by blank row in between them i.e. "Blank Row" • Block value : This column is available when you use Loops and is tied to mapping performed in "Block Type" column. You essentially tell Process Runner DB how many rows constitutes a group of block or which column to look for similar values or blank rows. Block Type and Block Values together provides very powerful and natural looping capability. • Optional : This column displays if field is optional or mandatory. All the mandatory fields must have mapping assigned to it or Process Runner DB will throw validation error when you run the file.
Right click menu items: • Select All Rows : Selects all the rows displayed in Mapper. • Fast Map : These actions are applied to all the selected row. • None : Removes any mapping previously assigned. • DS to SAP : Tells Process Runner DB to get the value from Data source column • SAP to DS : Tells Process Runner DB to place value received from SAP to given Data Source column • Simple View : View the most relevant columns in Mapper. • Advance View : View more advance columns in Mapper. • Active Rows : Displays only Active Rows • Inactive Rows : Displays only Inactive Rows • All Rows : Displays all the rows (Active + Inactive) • Restore to Original recording : Revert to fresh mapper settings (Mapper settings after New Recording). |
Note: Other than the above record level Right Context Menu, Process Runner DB also provides a simple right click menu for basic text operations like Cut, Copy, Paste, Delete and Select All for fields which are editable.
