Basic Mapping Types - GUI Script

Mapping types in GUI script are similar to those of transaction types

These mapping types deal with single line records.

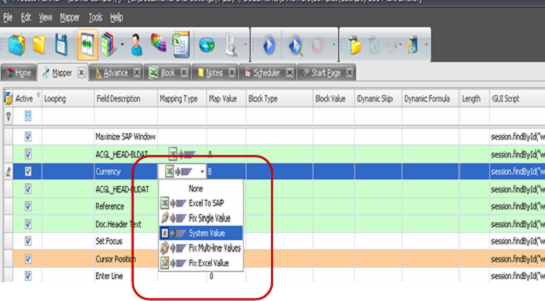

1.   Excel to SAP: Tells Process Runner to get the value from Excel column

2.   Fix Single Value: Tells Process Runner to use value provided in "Map Value" column

3.   System Value: Tells Process Runner to use dynamically calculated value as provided in "Map Value" column

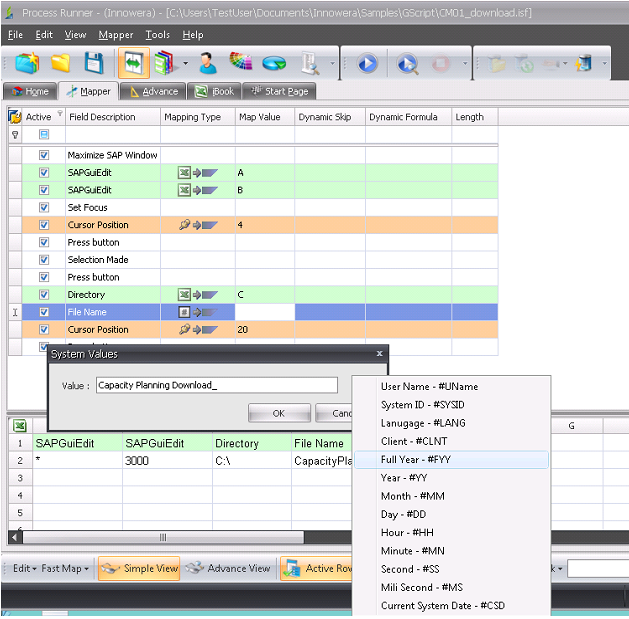

Eg. In the below capacity planning download we want to assign a specific type of file name for the downloaded file consisting of year,month, day, hours and seconds.

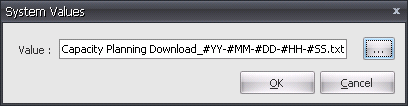

For that we use system value and assign it as shown below in 2 screens.

You can see below how the file is created, after assigning system value as a mapping type

4.   Fix Multi-line Value: Tells Process Runner to place a range of values as shown below

5.   Fix Excel Value: Tells Process Runner to place value received from SAP to given Excel cell
