Basic Mapping Types - BAPI/RFM

 Previous  Top  Next

BAPI mapping types are different from that of transaction in the sense of UI. They are sensibly placed in their respective sections according to the Mapping action they perform.

For BAPI, Mapper is divided into 3 subsections

1.   Upload to SAP

2.   Download from SAP

3.   Upload/Download from SAP



These mapping types deal with single line records.

MT-BAPIb1



hmtoggle_plus11.    Upload to SAP

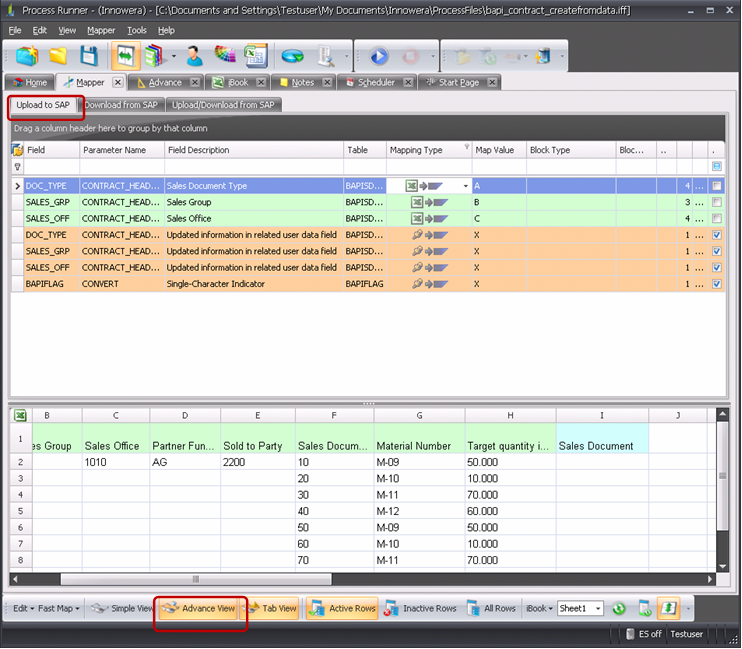

Fields that are input to SAP

MT-BAPIb2

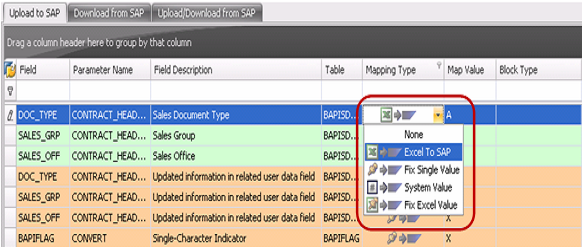

i.    None: Removes any mapping previously assigned.

ii.    Excel to SAP: Tells Process Runner to get the value from Excel column.

iii.   Fix Single Value: Tells Process Runner to place value received from SAP to given Excel column.

iv.   System Value: Tells Process Runner to use dynamically calculated value as provided in "Map Value" column.

v.    Fix Excel Value: Tells Process Runner to place value received from SAP to a given Excel cell.



hmtoggle_plus12.    Download from SAP

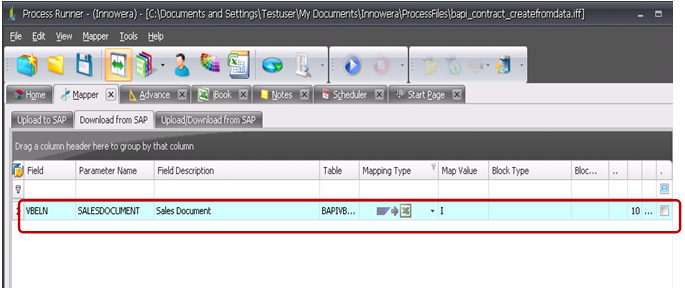

Fields that are output from SAP.

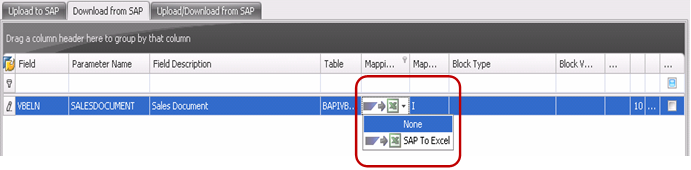

i.     SAP to Excel: Tells Process Runner to place value received from SAP to given Excel column.

MT-BAPIb3MT-BAPIb4



hmtoggle_plus13.    Upload/Download from SAP

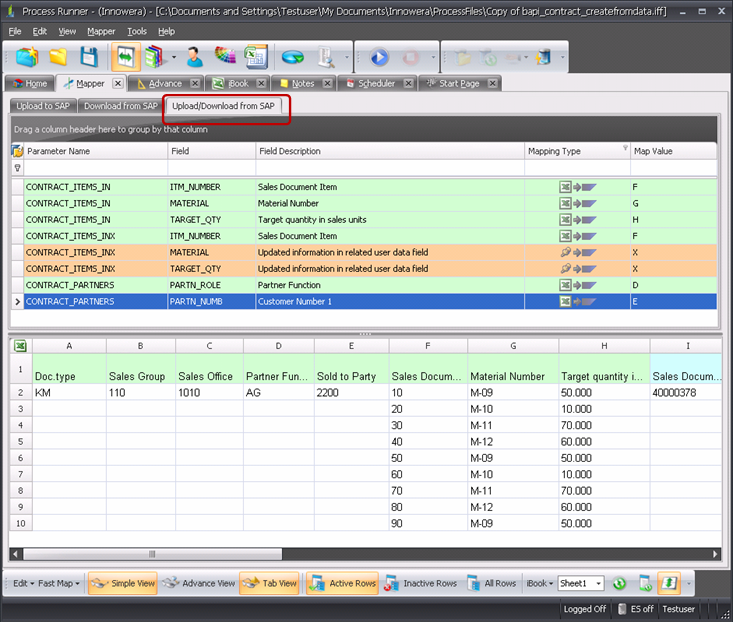

These are the fields which can act as both input/output to/from SAP respectively.

MT-BAPIb5
