BAPI/RFM

BAPI/RFM

BAPI mapping types are different from that of transaction in the sense of UI. They are sensibly placed in their respective sections according to the Mapping action they perform.

For BAPI, Mapper is divided into 4 subsections

1. Upload to SAP

2. Download from SAP

3. Upload tables to SAP

4. Download tables from SAP

These mapping types deal with single line records.



hmtoggle_plus1Upload to SAP

Fields that are input to SAP.



BAPI_Upload_2_SAP

1.DS to SAP: Tells Process Runner DB to get the value from database.

2.Fix Single Value: Tells Process Runner DB to use value provided in "Map Value" column

3.System Value: Tells Process Runner DB to use dynamically calculated value as provided in "Map Value" column.

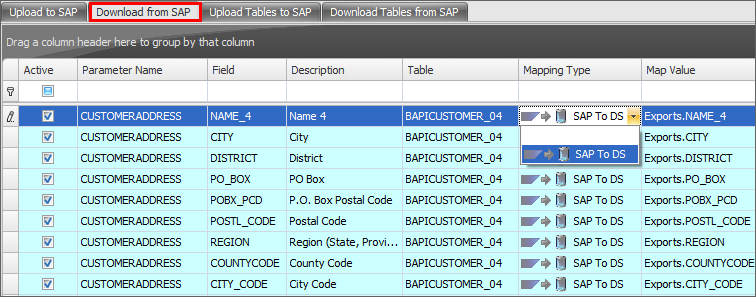

hmtoggle_plus1Download from SAP

Fields that are output from SAP.

SAP to DS: Tells Process Runner DB to place value received from SAP to database.

BAPI_Download_frm_SAP



hmtoggle_plus1Upload/Download tables to/from SAP

These are the fields which can act as both input/output to/from SAP respectively.

Upload_Tables_to_frm_SAP



Fix Multiple Values: Tells Process Runner DB to place a range of values as shown below

Fix_multiple
