Troubleshooting features – Test, Debug ALL, Debug Error and Error Processing Run

Previous  Top  Next
hmtoggle_plus11.Test Run

If you are not sure about the authenticity of your data, you can use this feature to test your data. This will not actually upload data to SAP. It will diagnose your data & give you appropriate message.

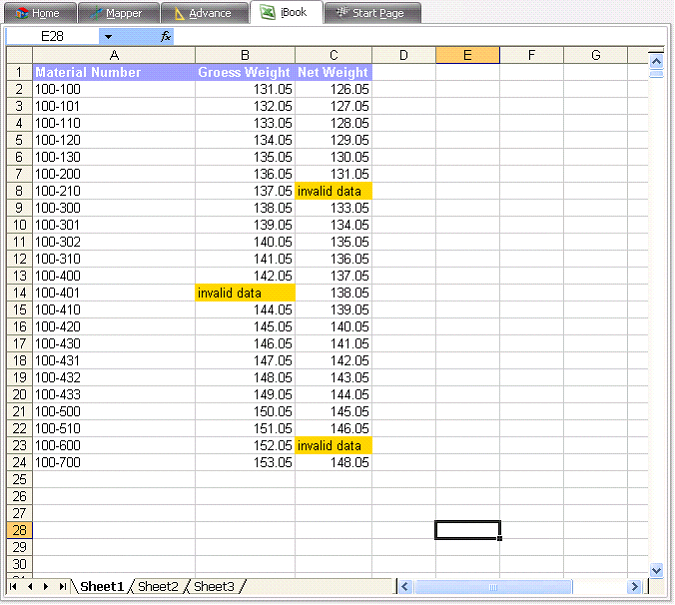

Take for example the following data sheet where we have invalid data at some places.



troubleshooting-featuresb1

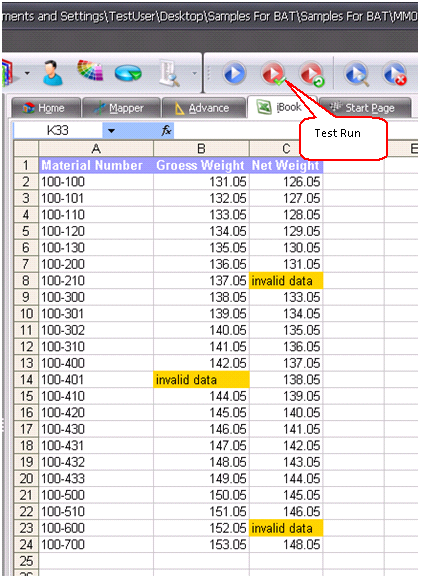

Click on Test Run Icon



troubleshooting-featuresb2

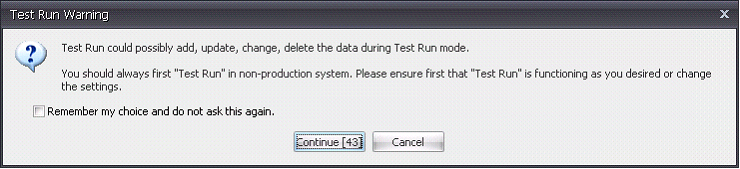

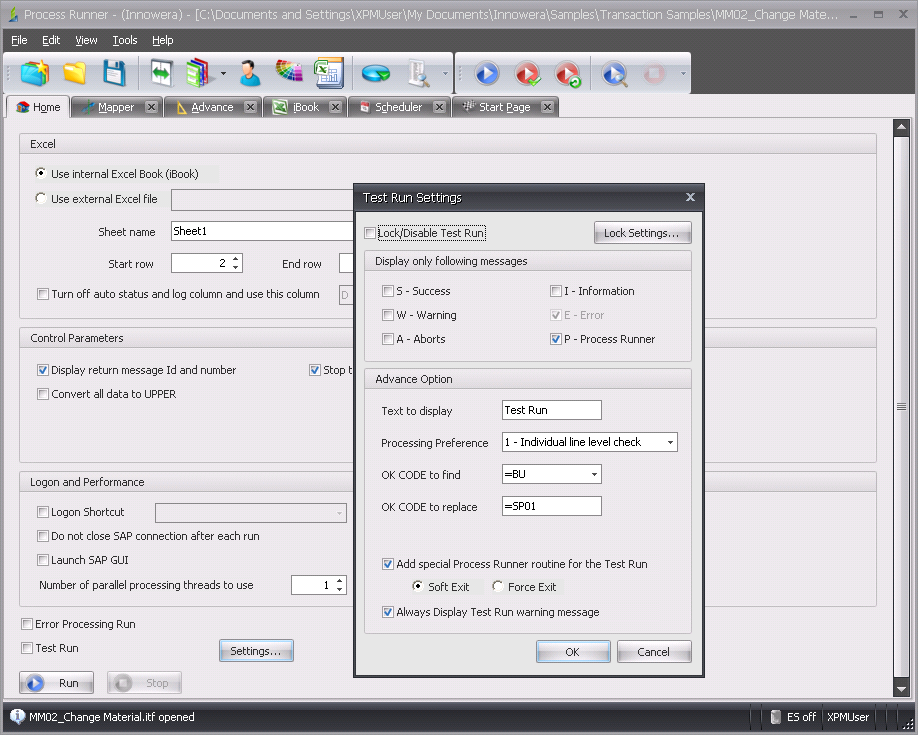

You will be prompted with a message to set your Test Run. If you want to change the Test Run Settings (related to Status Messages & OK_CODES) click on Settings in Home tab or else click on continue.



troubleshooting-featuresb3



clip0044

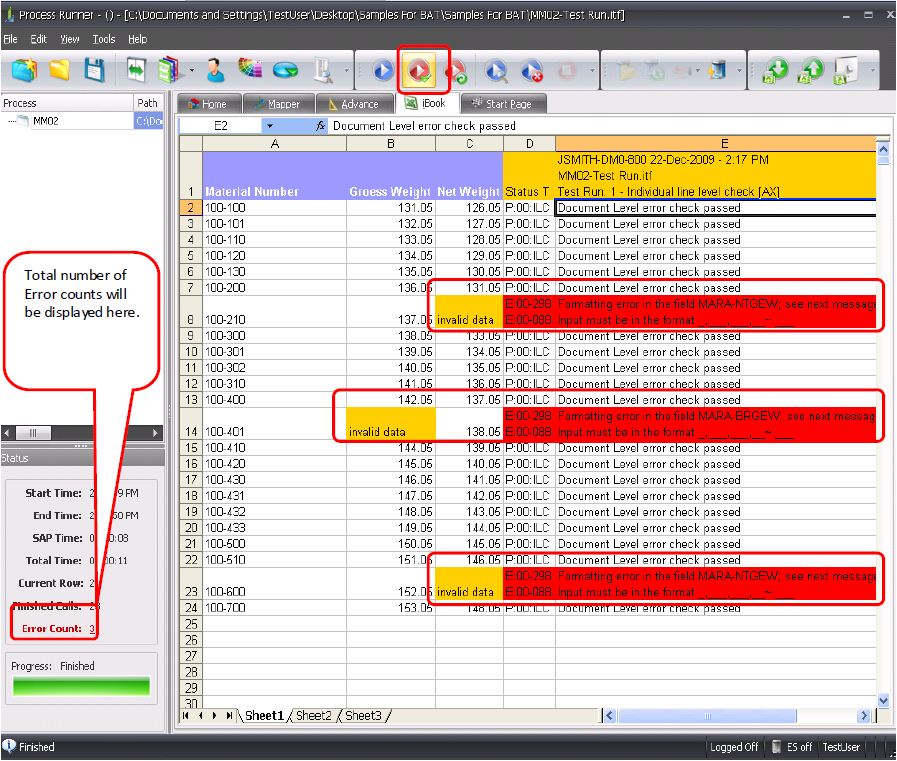

After test run, it will clearly display the appropriate message for erroneous data.

In timers & progress section, it will also display the total number of error counts.



clip0047



Thus, knowing the data with error you can change it before actual upload to SAP.



hmtoggle_plus12.Debug – ALL

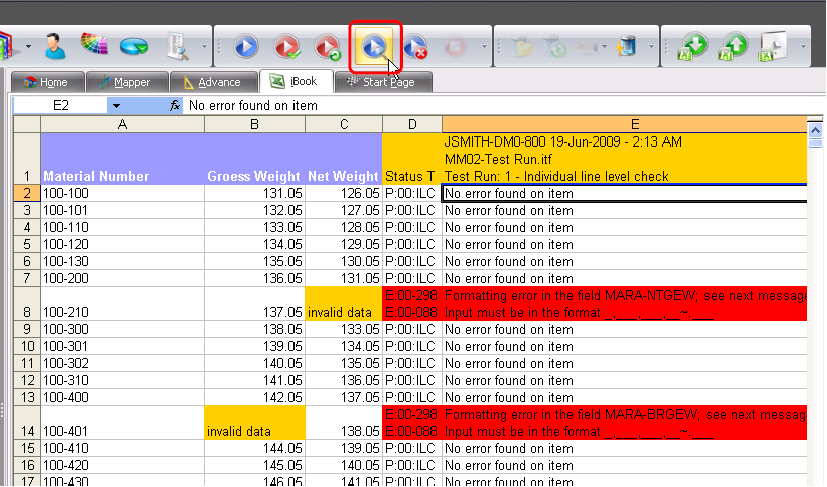

Debug – All allows you to go through screen by screen for each record in data sheet.

You can troubleshoot the data screen by screen & change it during the execution of process file.

clip0048

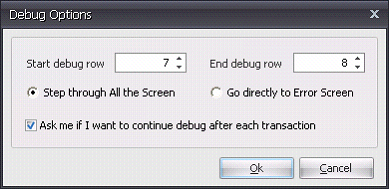

It will ask the “Start Row” & the “End Row” of the records that you want to Debug.

By default, Step through All the screen will be selected which means Debug-ALL. The other option is for Debug – Error.



troubleshooting-featuresb7



There is also an option (“Ask me if I want to continue debug after each transaction”) where in Process Runner will ask you whether you want to continue debugging after that transaction is over.

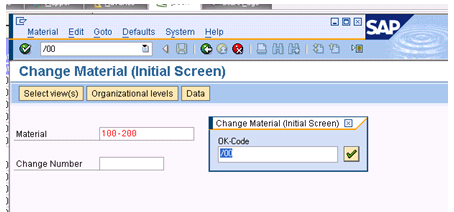

See below, it actually launched SAP GUI & will take you through it screen by screen.



troubleshooting-featuresb8

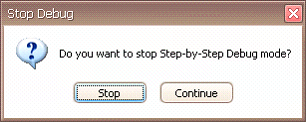

After debug is done, based on your selection it will ask whether you want to stop Step-By-Step Debug mode.



troubleshooting-featuresb9



hmtoggle_plus13.Debug – Error

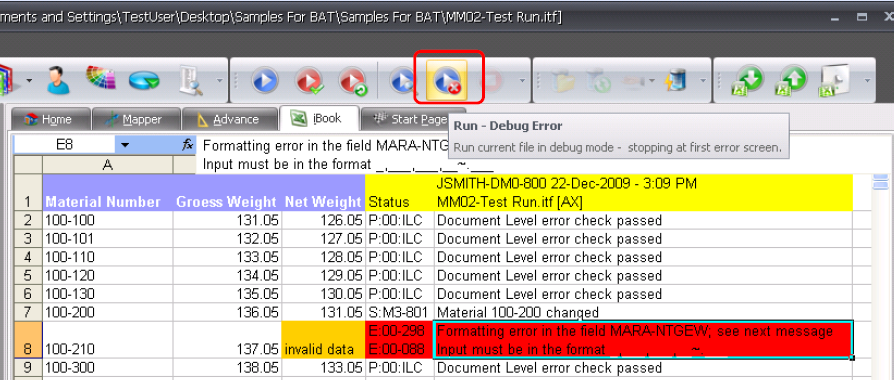

Many times you might only want to see where exactly the error in you data is. So instead of browsing through all the screens (Like Debug - ALL) this option will take you directly to the point where your error occurs in the upload to SAP.

clip0049

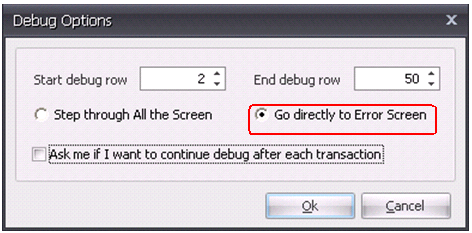

You will be asked to provide the range of rows for which you want to Debug – Error.

troubleshooting-featuresb11

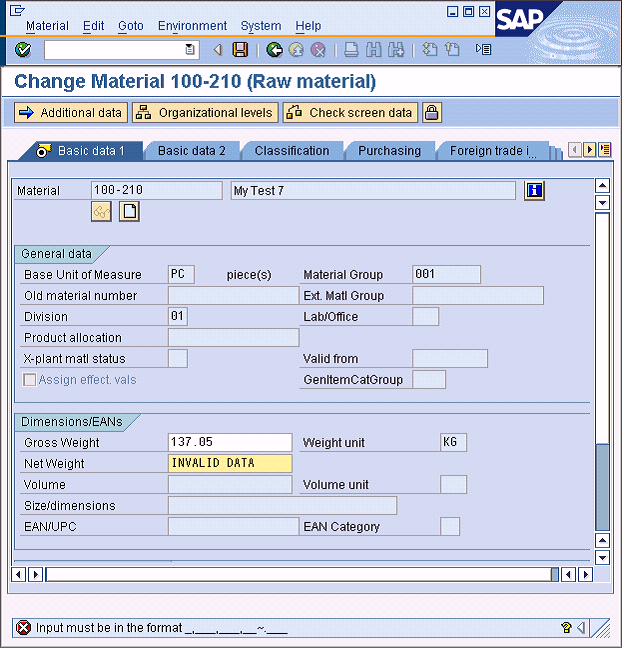

Click on OK, you will be directly take n to the screen in SAP where this error-data is uploaded to SAP.

troubleshooting-featuresb12



You can change the data at that very point & continue.



hmtoggle_plus14.Error Processing Run

Once you know where there is error in your data, you might like to focus & correct only those fields & proceed further.



clip0050



Once aware of the data with error (that you get after test run), change the data to some valid values.



troubleshooting-featuresb14



Click on Error Processing icon in the toolbar.



troubleshooting-featuresb15



You can also do this by clicking on Error Count in the Timer & Progress display.



troubleshooting-featuresb16



It will ask you to notify the Status column. From this it will pickup Status codes, if error code found it will re-process that record only or else leave it.



troubleshooting-featuresb17



Click on OK

It will display the prompt that only data with errors found during test run will be processed.



troubleshooting-featuresb18



Click on Yes & proceed further.



As shown below, it will process the error records & upload the changed/valid data.

Notice the Error count status to nothing.



clip0051
