Custom DS

Custom DS on Field

The above 3 types just mentioned were the built in DS types provided in Mapper.

What if we want to check the values “on the Fly” during Run time & perform some action based on that?

Custom DS is the answer.

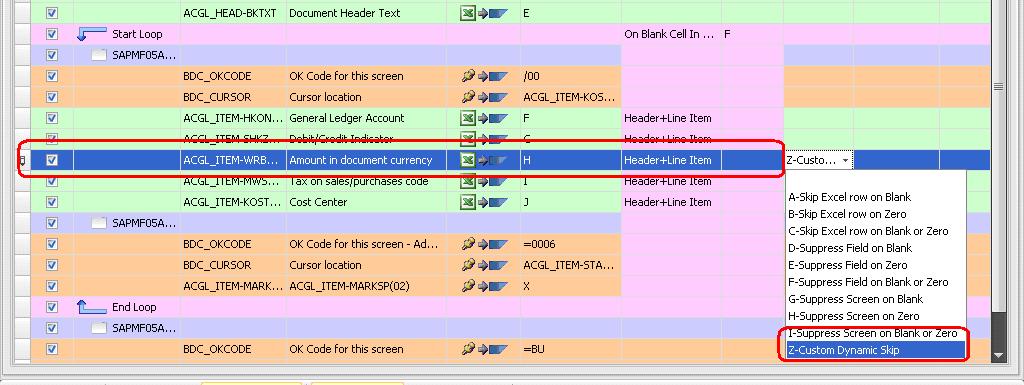

Select “Custom Dynamic Skip” from the drop-down for amount field.

custom-ds-FLDb1

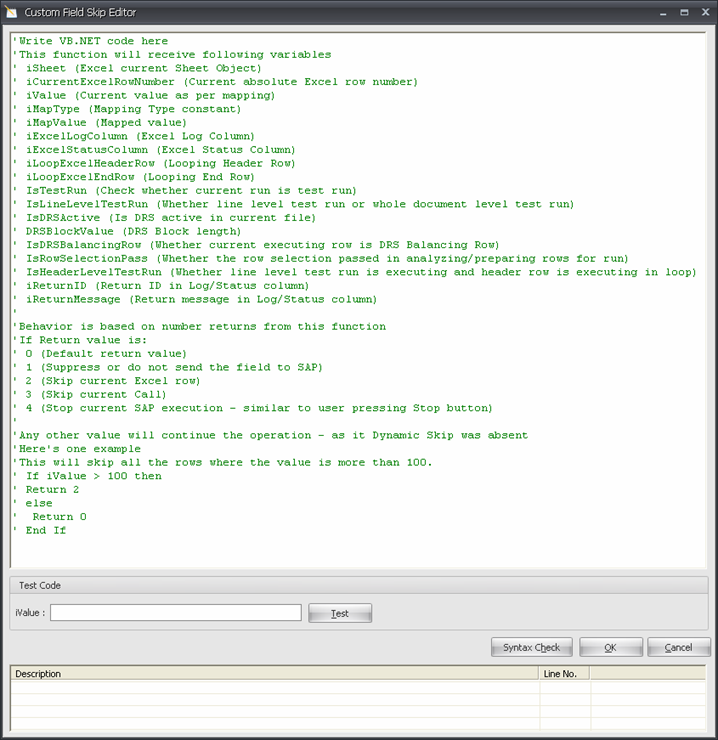

Custom DS screen will pop-up.

This is a small IDE, where users can write their VB.Net code to perform various Run-Time actions based on the data they put in their excel data sheet.

Besides the inbuilt DS types that we discussed before Custom DS also supports various options.

custom-ds-FLDb2

Let us understand the pre-defined variables and return types that can be used in Custom DS on field with VB.Net code.

Variables:

•	iSheet: current excel sheet

•	iCurrentExcelRowNumber: current absolute excel row number

•	iValue: current value pertaining to mapping

•	iMapType: Mapping Type

•	iMapValue: Mapped Value

•	iExcelLogColumn: Excel Log column

•	iExcelStatusColumn: Excel Status column

•	iLoopExcelHeaderRow: Looping header row

•	iLoopExcelEndRow: Looping End Row

•	IsTestRun : Check whether Current Run Is Test Run

•	IsLineLevelTestRun: Whether Line Level Test Run or Whole Document Test Run

•	IsDRSActive : is DRS Active in Current File

•	DRSBlockValue: DRS Block length

•	IsDRSBalancingRow: Whether current Executing Row Is DRS Balancing Row

•	IsRowSelectionPass: Whether the row selection passed in analyzing/preparing rows for Run

•	IsHeaderLevelTestRun: Whether Line Level Test Run is executing And Header Row is Executing in Loop

•	iReturnID (Return ID in Log/Status column)

•	iReturnMessage (Return message in Log/Status column)

•	Return Types: (Any other value will continue the operation as if Dynamic Skip was absent)

0: Default return value.

This will tell Process Runner to send the row to SAP and not suppress it.

1: Suppress or do not send the field to SAP.

This will tell Process Runner to suppress a row and will not send it to SAP.

2: Skip current excel row.

This will tell Process Runner to skip a row and not send it to SAP.

3: Skip current call.

This will skip one entire call to SAP.

4: Stop current SAP execution.

Similar to pressing Stop button in Process Runner.

Example:

If Trim(iSheet.Cells(iCurrentExcelRowNumber, "i").Text) = "31"

Return 0

else

Return 1

End If

The above code tells Process runner if there is “31” in column “I” for the current row in current sheet then only execute (Return 0) the row else suppress (Return 1) it.

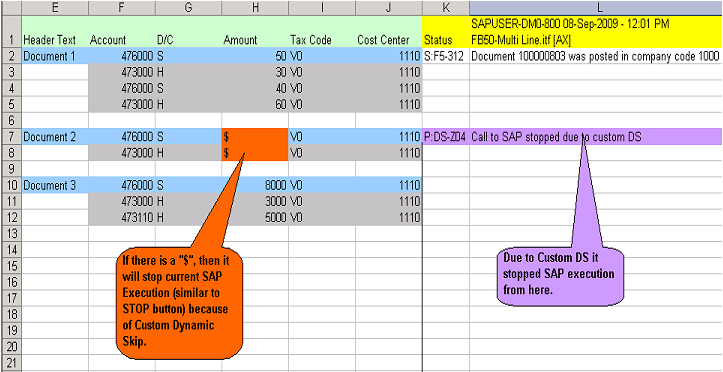

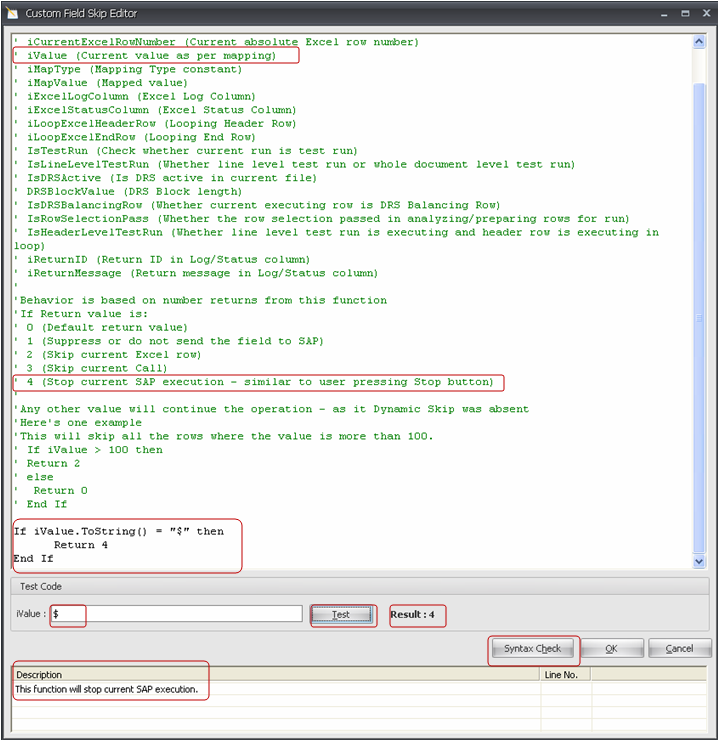

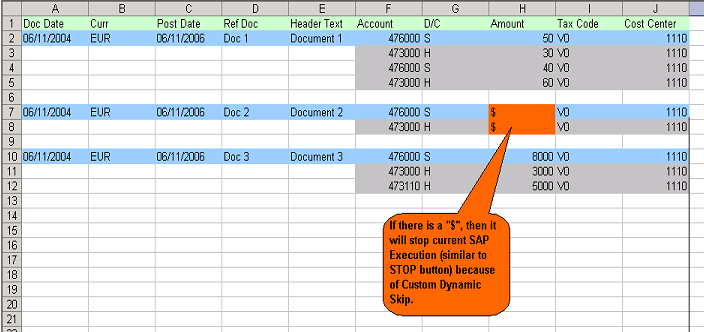

Here we will see a small example that if we encounter “$” in amount field it should stop the transaction.

custom-ds-FLDb3
