Process Runner recording that is stored in script/XML file can easily be changed via various graphical tools provided in the Mapper tab.



editing-process-runner-recordingb1

How to insert loops and remove extra screens:

Below is an example of an advanced editing functions. In this example, we want to delete extra screens and fields, insert a loop and further adjust this loop. Will see how this can be done using graphical Mapper. Click here to check out the Mapper layout for Process Runner files.



hmtoggle_plus1A. Current Recording that we want to change

editing-process-runner-recordingb2



hmtoggle_plus1B. Inserting Loop

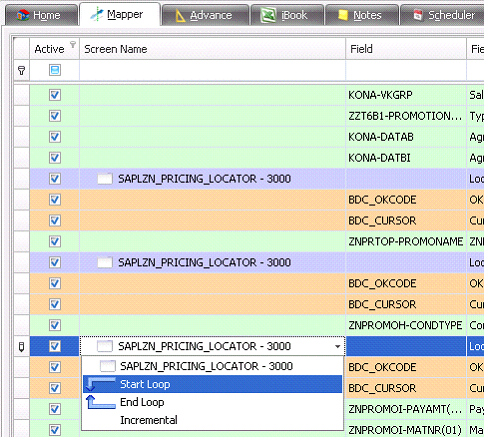

Loop are required for multi line or header-detail transaction. To insert a loop, click on any row on "Screen Name" column and select "Start Loop".



editing-process-runner-recordingb3



➢Note: Once you select "Start Loop", Process Runner will automatically insert "End Loop" at the end of the file.  You can cut/paste the "End Loop" line to move it to a different place if required.

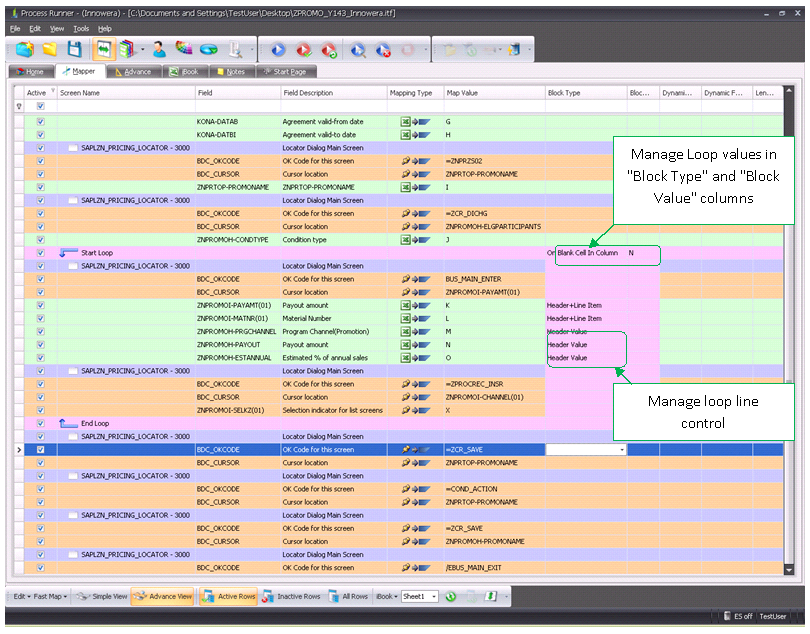

hmtoggle_plus1C. This is how the screen should look like after above adjustments. You can make some more changes if required

editing-process-runner-recordingb4



Click here to know more on mapping types to deal with multi-line documents by using loops.

Click here to know the different types of loop in transaction.
