Drag n Drop between Data Preview Section:



Process Runner has an inbuilt Drag n Drop feature provided to ease the user with the mapping of fields directly on one screen rather than going back & forth between Mapper and iBook or external Excel File.

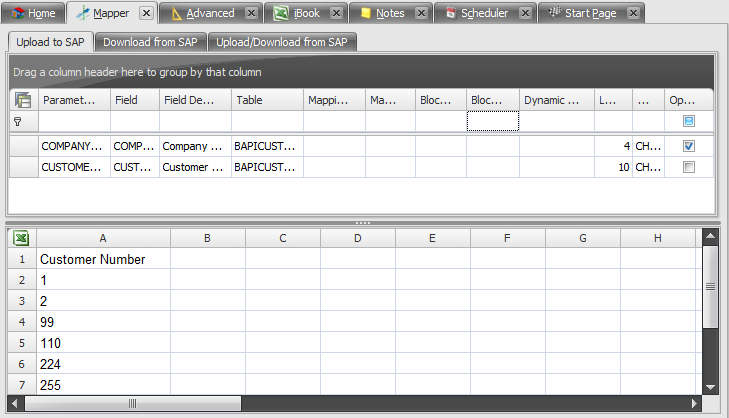

As shown below, there’s a small Excel look-alike Data Preview Section provided below Mapper which will help user in Mapping Fields.



Data preview



Following is an example of how to do it.

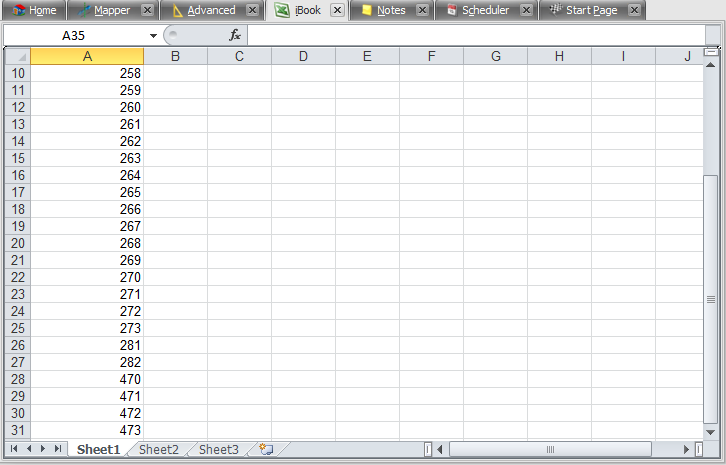

1. Shown below is an iBook (it can also be an external Excel File) with Customer codes in column A of Sheet 1.



Data preview1

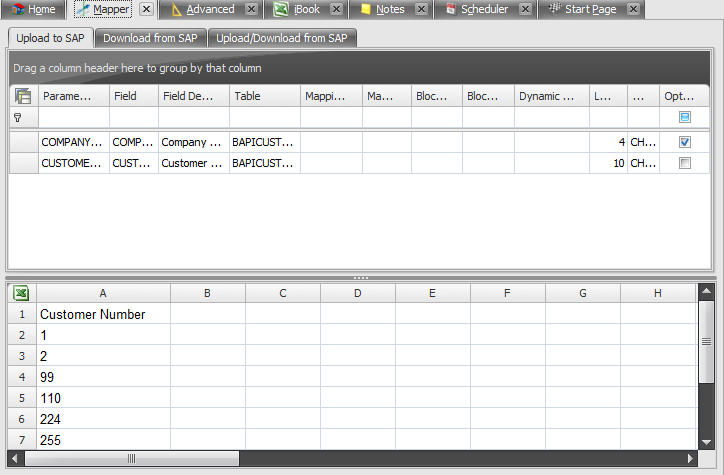

2. Process Runner will automatically import iBook (or an external Excel File) and append it below the Mapper (in the Mapper tab).



Data preview2

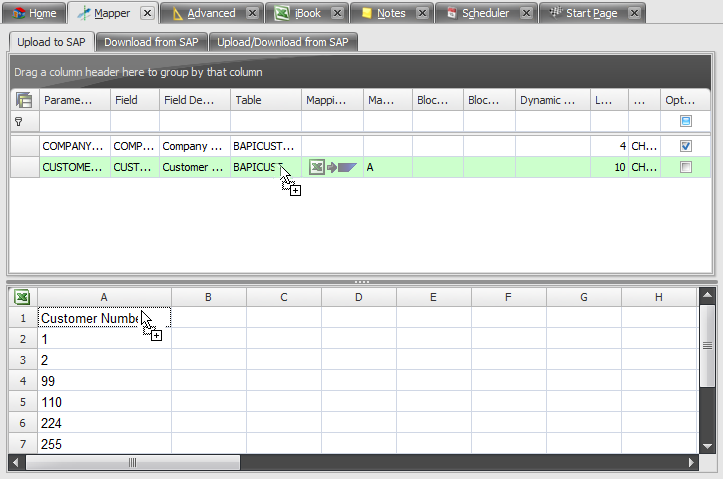

3. In our example, if we want to Map the Parameter CUSTOMERNO, we would simply drag the column A from the Data Preview Section & drop it on CUSTOMERNO parameter record. Process Runner will intelligently change its Mapping type to ‘Excel to SAP’ and assign A (the column that we dragged) to Map Value.



Data preview3

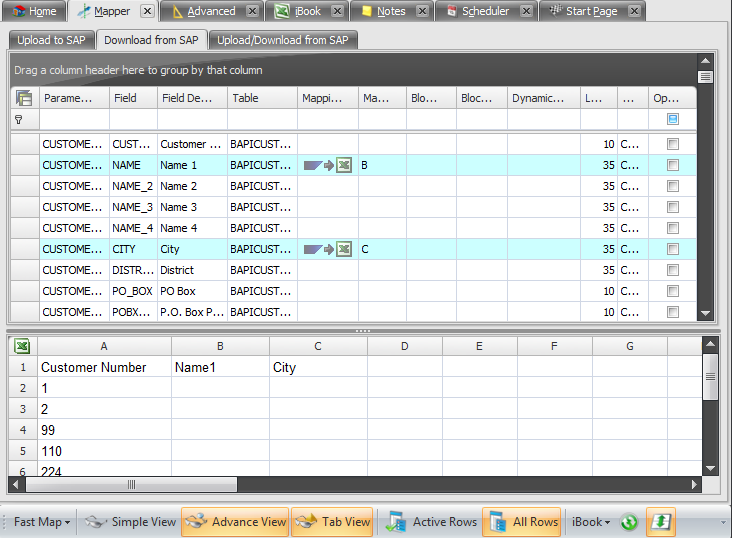

4. Similarly if we do Drag n Drop for two other fields namely NAME & CITY then Process Runner will automatically assign its Mapping Type to SAP to Excel.



Data preview4

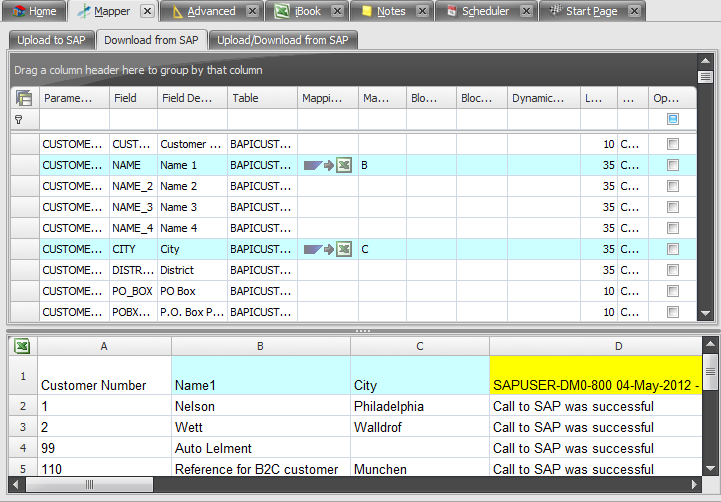

5. When the example is executed (RUN), then you can also view your results in the grid below same as you can see in iBook (or external Excel File).



Data preview5
