Custom Formula

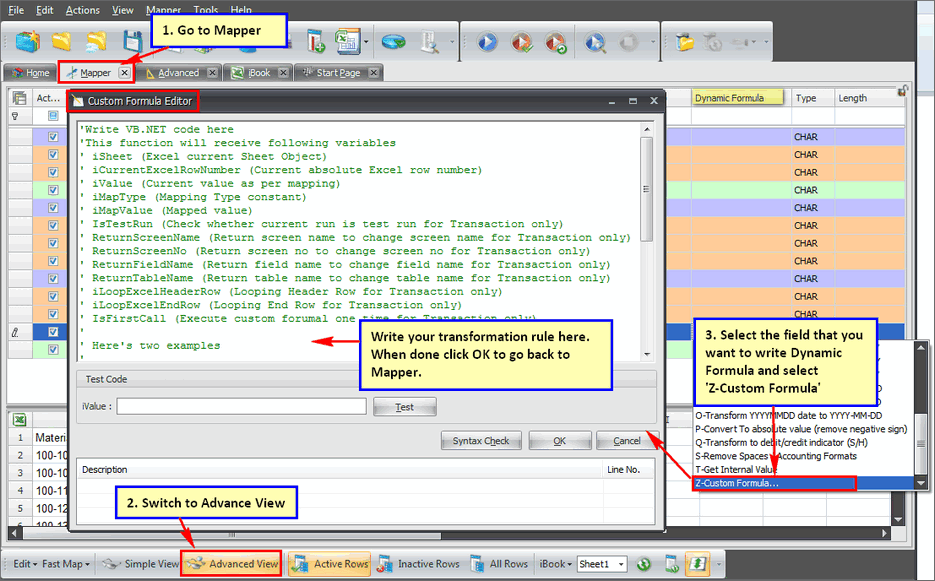

Below screenshot shows how to access Custom Dynamic Formula editor in Mapper. You can use Dynamic Formula to transform the data and apply business rule on-the-fly.

Let us understand the pre-defined variables and return types that can be used in Custom Dynamic Formula on field with VB.Net code.

Variables	Description
iValue	Current value pertaining to mapping
iSheet	Current excel sheet
iCurrentExcelRowNumber	Current absolute excel row number
iMap Type	Mapping Type
iMap Value	Mapping Value
IsTestRun	Checks whether current run Is Test Run. This is for Transaction Only.
iLoopExcelHeaderRow	Looping header row. This is for Transaction Only.
iLoopExcelEndRow	Looping end row. This is for Transaction Only.
ScreenName	Screen name
ScreenNo	Screen No
ReturnScreenName	Returns screen name. This is for Transaction Only.
ReturnScreenNo	Returns screen number. This is for Transaction Only.
ReturnFieldName	Returns field name (without table name).This is for Transaction Only.
ReturnTableName	Returns table name (without field name). This is for Transaction Only.
IsFirstCall	Executes Custom Dynamic Formula only once (first time). This is for Transaction Only.

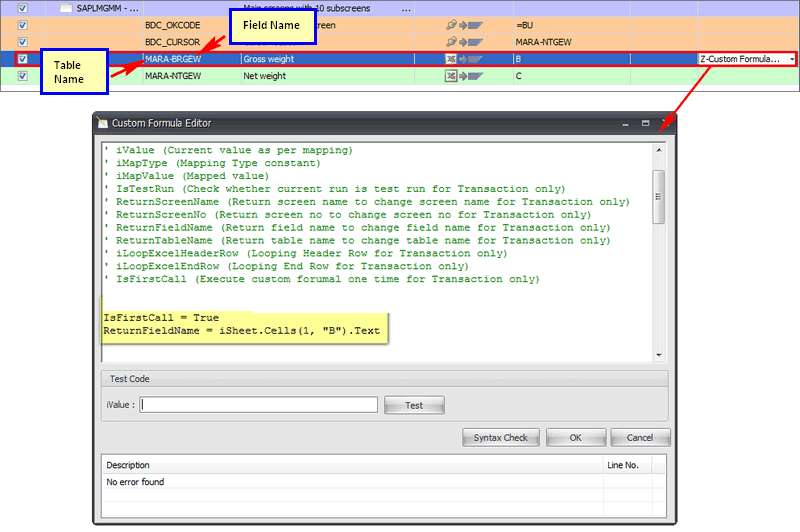

For example, consider a Custom Formula that uses 'IsFirstCall' and 'ReturnFieldName' variables for 'Gross Weight' field of MM02- Change Material process file.

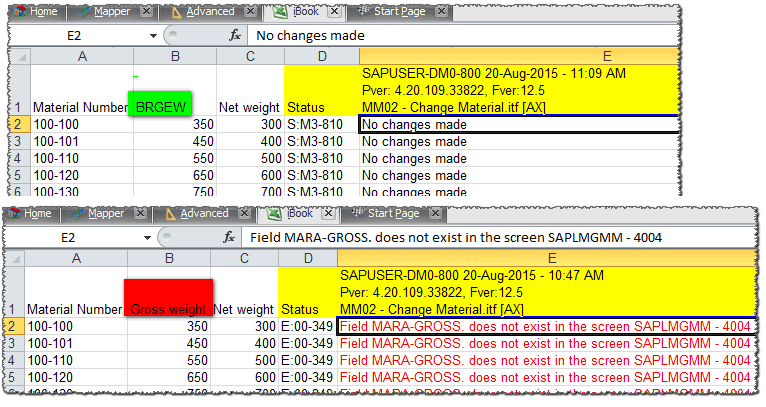

In this example when MM02- Change Material process file is executed, Custom Formula is executed only once and 'BRGEW' field name will be returned from Excel Cell. Hence for the file to run successfully, user will require to change the column name in iBook/External data sheet with field name (BRGEW) as shown in below screen shot else error will be displayed if any other value is returned. In below screen shot error is encountered if 'Field Description' is used instead of Field Name.
