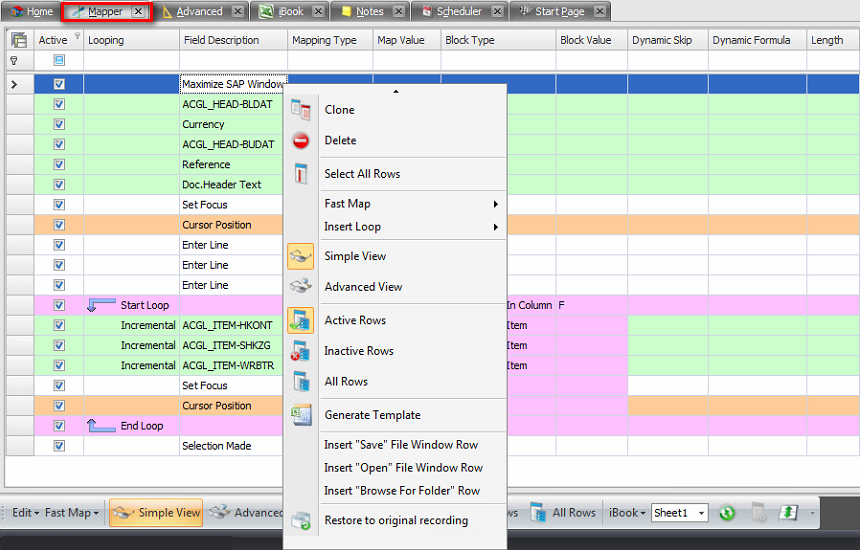

gui - mapper







hmtoggle_plus1Columns - Simple View

•Active: This check box tells Process Runner to either consider the given row or not. Setting a row to inactive (de-selecting) will tell Process Runner to keep the row but not to look at when you execute this process.



•Looping: This field tells Process Runner from where the loop is started and where it is ended.

•Field Description: Displays Field or Screen description if you had earlier requested that information while creating this file. This is purely for information or readability purpose and does not impact how transaction is executed.

•Map Value: In this field you provide actual mapped value based on Mapping Type. For example, if you have mapping type set as "Excel to SAP", you specified which Excel column to use in this column.

•Dynamic Skip: It allows skipping Excel Row dynamically, Field or screening elements from being sent to SAP.

•Dynamic Formula: It allows changing field value dynamically before it is send to SAP.

•Length: It allows set field length as required by SAP.





hmtoggle_plus1Columns - Advanced View

•Active: This check box tells Process Runner to either consider the given row or not. Setting a row to inactive (de-selecting) will tell Process Runner to keep the row but not to look at when you execute this process.

•Looping:

•Field Description: Displays Field or Screen description if you had earlier requested that information while creating this file. This is purely for information or readability purpose and does not impact how transaction is executed.

•Map Value: In this field you provide actual mapped value based on Mapping Type. For example, if you have mapping type set as "Excel to SAP", you specified which Excel column to use in this column.

•Dynamic Skip: It allows skipping Excel Row dynamically, Field or screening elements from being sent to SAP.

•Dynamic Formula: It allows changing field value dynamically before it is send to SAP.

•Length: It allows set field length as required by SAP.

•GUI Script: Displays the GUI Script being used.



hmtoggle_plus1Mapping Types

•Excel To SAP: Tells Process Runner to get the value from Excel column.



•SAP To Excel: Tells Process Runner to place value received from SAP to given Excel column.

•Fix Single Value: Tells Process Runner to use value provided in "Map Value" column.

•System Value: Tells Process Runner to use dynamically calculated value as provided in "Map Value" column.

•Excel Cell Value: Tells Process Runner to place value received from SAP to given Excel cell.

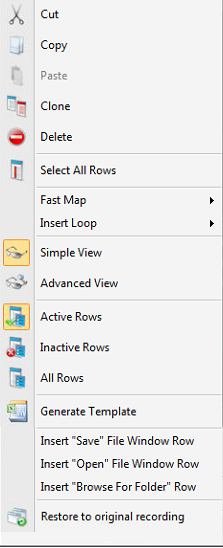

hmtoggle_plus1Right Click Menu Items

•Cut: Cut current row to clipboard.



•Copy: Copy current row to clipboard.

•Paste: Paste raw from clipboard before current row.

•Clone: Duplicate Single / Multiple selection of records in Mapper.

•Delete: Delete Single / Multiple selection of records in Mapper.

•Select All Rows: Selects all the rows displayed in Mapper.

•Fast Map: These actions are applied to the entire selected row.

➢None: Removes any mapping previously assigned.

➢ Excel To SAP: Tells Process Runner to get the value from Excel column.

➢SAP To Excel: Tells Process Runner to place value received from SAP to given Excel column.

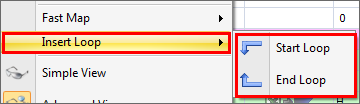

•Insert Loop: Specify looping for handling Multiline documents.

GS_loop

•Simple View: View the most relevant columns in Mapper.

•Advanced View: View more advance columns in Mapper.

•Active Rows: Displays only Active Rows.

•Inactive Rows: Displays only Inactive Rows

•All Rows: Displays all the rows (Active + Inactive)

•Generate Template: It allows generating Excel (iBook) template.

•Insert “Save” File Window Row: It allows setting to provide full file path to download files from SAP.

•Insert “Open” File Window Row: It allows setting to provide full file path to upload files to SAP.

•Insert "Browse For Folder" Row: It allows settings to provide full folder path to SAP.

•Restore to Original recording: Revert to fresh Mapper settings (Mapper settings after New Recording).

gui right click
