To start Innowera Commander, go to All Programs -> Innowera and click on Innowera Commander.
•Start: It is used to start the execution of incoming scheduled jobs. •Pause: To stop the execution of job/process click ‘Pause’. •In Queue: It will display only those processes which are with In-queue status. •Executing: It will display all the executing processes. •Finished Execution: It will display all the finished executed processes. •Error: It will display the executed processes with error. •Skipped: It will display the list of processes skipped. •All: It will display all the scheduled processes i.e. In Queue, Executing, Error etc… •Options:
▪Maximum number of Process Runner DB session: It defines the maximum number of sessions of Process Runner DB which can be run at a time. ▪Launch at Startup: This option when enabled launches the Innowera Commander application whenever the system boots up. ▪Launch Commander when schedule: This option when enabled launches the Innowera Commander when any scheduled process is triggered.

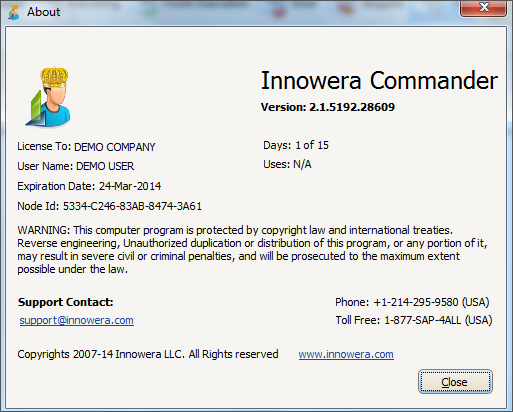

•About
▪License To: It will display the name of the company to whom license has been issued. ▪User Name: It will display the name of the user to whom the license is issued. ▪Expiration Date: It will indicate the expiration date of the license.
•Exit: If you want to close Innowera Commander, click ‘Exit’.
Note: Once you exit Innowera Commander your scheduled processes will not execute.
|

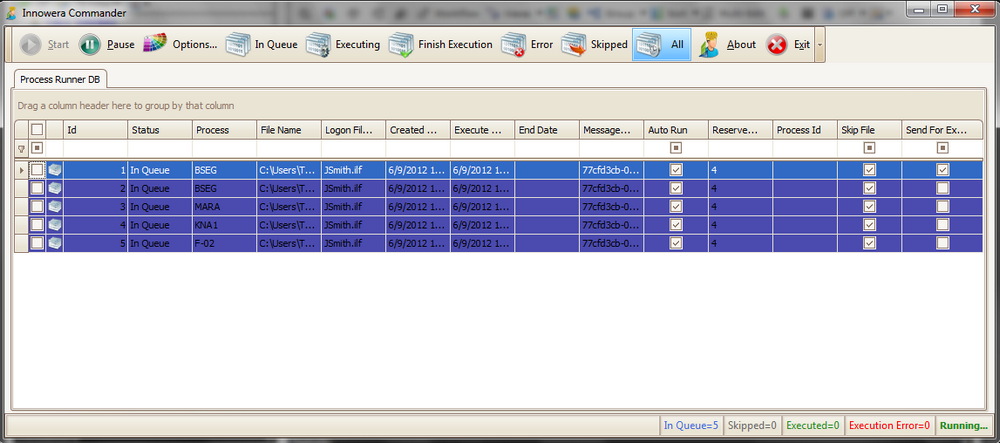

Innowera Commander displays the following details of Scheduled Processes in tabular form.
•Id: Id is an incremental number which will be automatically generated for scheduled processes.
•Status: Status column will display the status of the jobs/processes, whether the job is executed or is supposed to execute. For the successful execution of the process status will be ‘Finished Execution’ and for the processes to be execute status will be ‘In Queue’.
•Process Name: This column will indicate the name of the process scheduled for execution.
•File Name: It will display the name and location of the file.
•Logon File Name: Display the logon file name used in Process Runner DB.
•Created Date: It will display the created date of the scheduled process.
•Execute Time: It will display the time taken to execute the process.
•End Date: Shows the end date of the process.
•Message Id: Innowera Commander will automatically generate a ‘Message Id’ for the incoming processes.
•Reserve Time: Reserve time is the wait time for the process to execute. The process will wait for the instance of Process Runner DB to execute the process till the reserve time entered in Process Runner DB. If none of the instance of Process Runner DB is free then after that reserve time it will start new instance of Process Runner DB and execute the process.
For Example: If the reserve time entered is 2 minutes then the process will wait for 2 min to execute. If all the instance of Process Runner DB is busy executing other processes then after 2 minutes it will start new instance of Process Runner DB and execute the process.
•Process Id: It will indicate the Id/number in which instance of Process Runner DB the process is executing.
•Skip File: It shows the files skipped during execution of processes.
•Send for Execution: It shows the completion of the process.
Note: To execute the process after reserve time totally depends on the ‘Maximum number of Process Runner DB sessions” entered in Innowera Commander -> Options.
|
Next:
How to run scheduled processes by Innowera Commander
