Mapper Settings

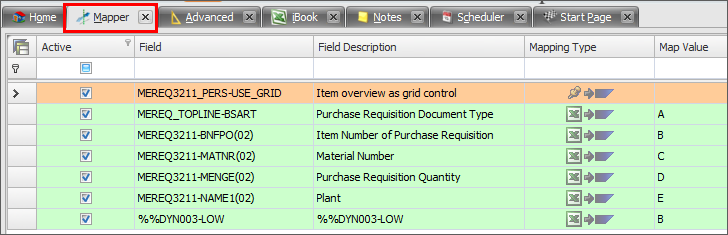

Your mapping should reflect as below in Simple View.

✓Click on Advance view in Mapper toolbar. A more detailed view of Mapper will be displayed.

✓Now we will be using Process Runner Start – End Loop Mapping Mechanism to assign advanced mapping types.

✓Find the occurrence of Create Item in SAPLMEGUI – 0014 (View: Purchase Order Window)

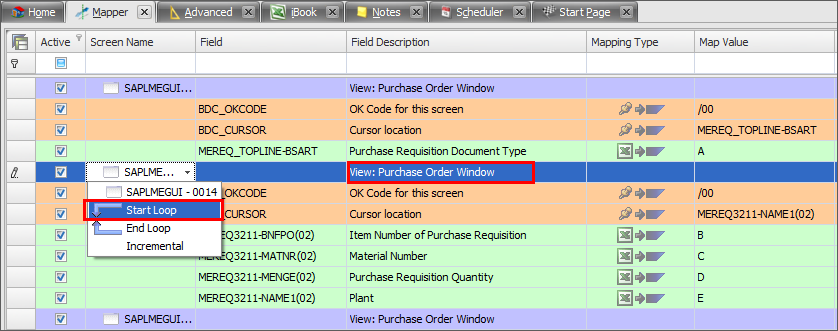

✓ Set the Start Loop.

Automatically a new row with mapping type Start Loop & End Loop will be added in the Mapper. On the Block Type for Start Loop and set Block Type to “On Value - Ignore Blank” & "Block Value to A“.

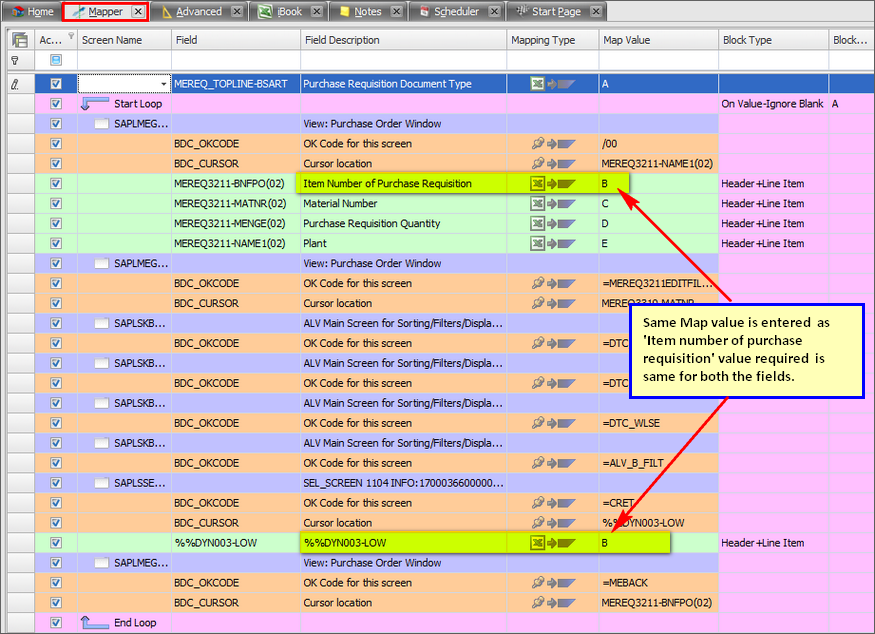

Set Block Type to Header+Line Item Value for Material Number, Item Number, Plant & Purchase Requisition Quantity.

Click on Run.

Next:

Run and Validation
